KY-ES Shielding Design Heat Shrinkable Tube
KY-ES Shielding Heat shrink tube is compounded of heat shrink polyolefin heat shrink tubing and shrinkable flexible conducting layer. When heating the polyolefin heat shrink tube, the conducting layer will shrink at the same time. It’s widely used for cable and connector terminal to provide efficient EMI shielding. Heat shrinkable tube resistant to dry torsion is lighter than the traditional metal braided shielding sleeving and easy to install. Shielding effeciency can be up to 35dB~70dB in 14KHz~10GHz frequency.

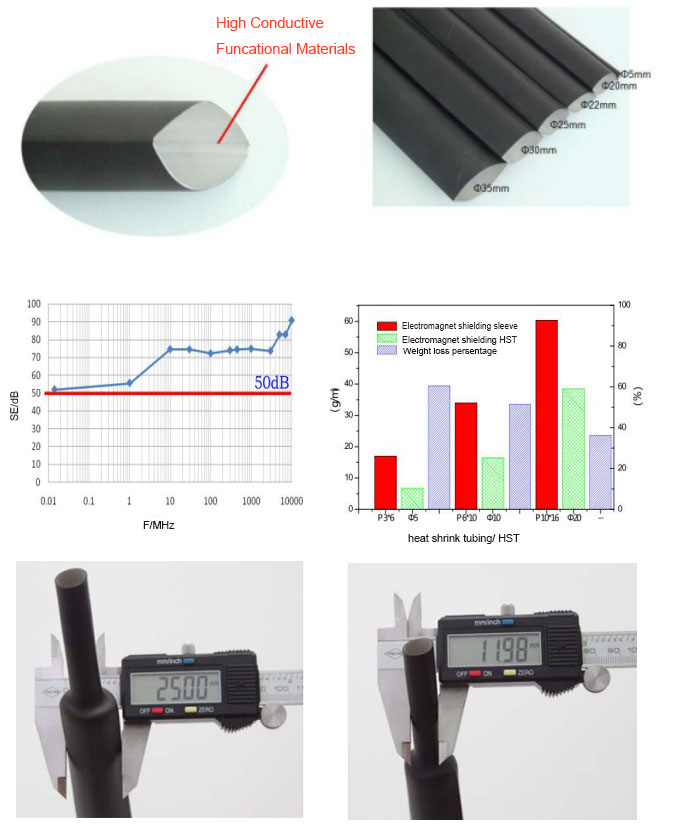

Feature & benefit
1, High shielding effectiveness, have quite wide shielding frequency, can work in 14kHz-10GHz and meet the stringent requirement. The shielding effectiveness can be up to 50 dB, it’s higher than the general shielding cable.
2, Light weight compared with the general anti-wave sleeve, Using the shielding heat shrink tubing can make the weight decrease more than 35%, especially if using the small diameter size, the weight will reduce more than 60%.
3, Good flexibility, the shielding layer is high polymer material, can be bended at random, can’t affect the shielding layer.
4, Easy to use, it’s quite convenient and quick to heat-shrink by using heat gun.
5: Shrink Rate: 2:1.
Standard shrink ratio is exceed 50%, we also can manufacture the high shrink ratio electromagnetic shielding heat shrinkable, its shrink ratio can exceed to 75%
Application Fields

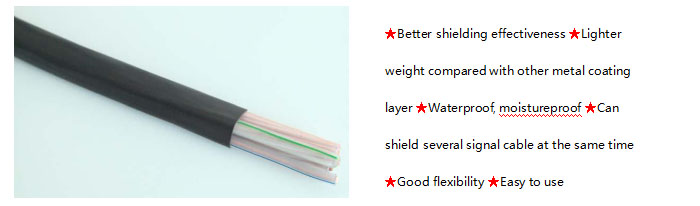

1, Used for high-performance shielding cable.

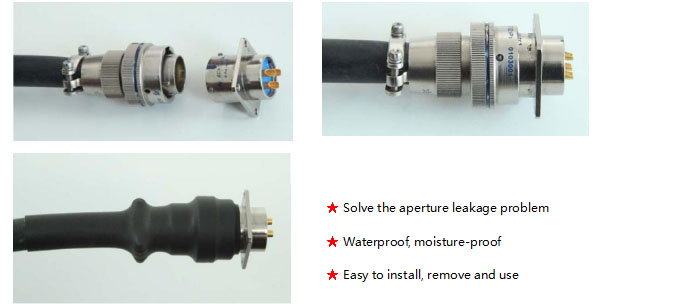

2, Used for cable connector.

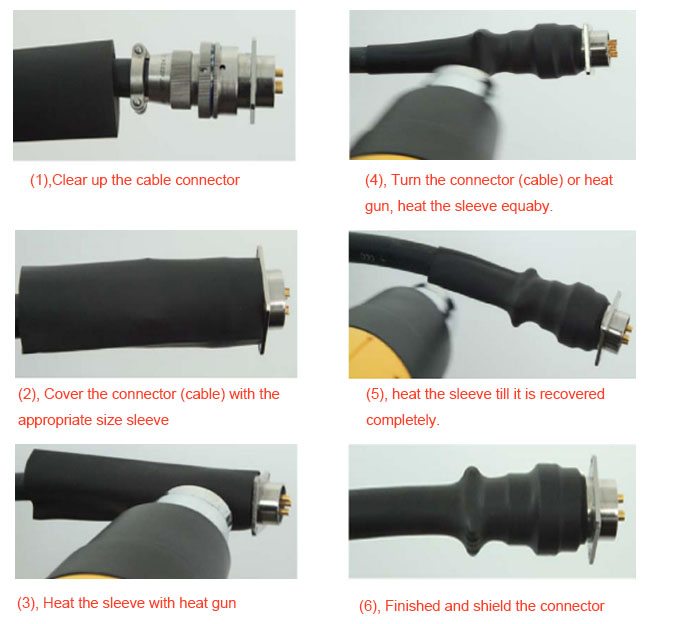

3, How to use?
Product dimension:
Above are parts of standard sizes, it’s available to custom-make other sizes, Length: 1 meters.
Part No. |
ID (mm) |
L (mm) |
Technical performance |
|||
Shielding effectiveness (dB) |
Shrink ration (%) |
Shrink temperature (℃) |
Working temperature (℃) |
|||
KY-ES-2004 |
4 |
1000 |
≥50 |
50~85 |
120~190 |
-55~130 |
KY-ES-2006 |
6 |
1000 |
||||
KY-ES-2008 |
8 |
1000 |
||||
KY-ES-2010 |
10 |
1000 |
||||
KY-ES-2015 |
15 |
1000 |
||||
KY-ES-2020 |
20 |
1000 |
||||
KY-ES-2025 |
25 |
1000 |
||||
KY-ES-2030 |
30 |
1000 |
||||
KY-ES-2040 |
40 |
1000 |
||||
KY-ES-2080 |
80 |
1000 |
Shrink Rate: 2:1

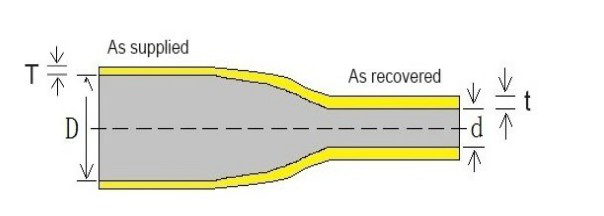

After Fully recovered schematic ( after shrinkable ) diagram
