ZIPF- Zipper Closely Woven Type Wire harness Textile Sleeve
All categories
Number of views:
1012

ZIPF- Zipper Closely Woven Type Wire harness Textile Sleeve

Retail price
0.0
Yuan
Market price
0.0
Yuan
Number of views:
1012
Product serial number
Quantity
-
+
Stock:
0
1
Product description
Parameters
性能

ZIPF- Zipper Closely Woven Type Wire harness Textile Sleeve



Products Description

Zipper closely woven type textile sleeving is seamed by polyester multifilament and zipper, product have superior fireproofing, noise-reduction performance, abrasion performance, dust tightness, easy to operate,etc. Zipper type structure is good to protect, maintain and repair the wiring harness in public.


Product application

Zippered woven/braided fabric sleeve Product can be used in offices, movie theaters, Industrial machinery, Automobile and other industries for wire harness protection.



parameters:

Material quality: polyester
Working temperature: - 50 ℃ to 150 ℃
Melting point: 240 + 10 ℃
Level of flame retardant: VW - 1
Standard color: black
Certification: ROHS

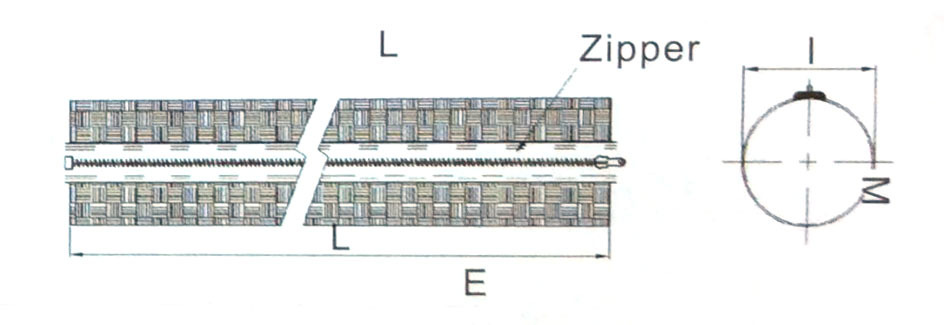

Drawing



Dimension



Part NO.

ID (MM)

Developed width(MM)

Max. Wire harness diameter(MM)

Packaging(L)

ZIPF-25

25

88

27

According to ustomers

requirement.

ZIPF-30

30

104

32

ZIPF-35

35

120

37

ZIPF-40

40

135

42

ZIPF-45

45

151

47

ZIPF-50

50

170

52

ZIPF-60

60

198

62



Remark:

1, Inner diameter is the diameter when the sleeving is roundness, Not the lay plat width.
2, Special packaging, special color, etc, Can be customized according to customer's requirements.
3, Product detail parameters, Please refer to our approval sample sheet.



Keyword:
Zippered woven fabric sleeve
Zipper Closely Woven Type Wire harness Textile Sleeves
Textile sleeve with zipper
