PVC CAP
PVC Elastic Sealing Cap / Dust CAP
1, Range of applications : According to the product’s size.
2, Materials: PVC .
3, Stock environments: Stock it in the cold, dying, and ventilated .
Product drawing:
Dimension
|
Size Φ |
Length （The longest） |
Wall Thickness |
|
Size Φ |
Length （The longest） |
Wall Thickness
|
|
1.5 |
10 |
0.8 |
14.0 |
40 |
1.2 |
|
|
1.8 |
10 |
0.8 |
15.0 |
50 |
1.2 |
|
|
2.0 |
15 |
0.8 |
17.5 |
35 |
1.2 |
|
|
2.3 |
10 |
0.8 |
18.0 |
45 |
1.5 |
|
|
2.5 |
15 |
0.8 |
20.0 |
50 |
1.5 |
|
|
2.8 |
10 |
0.8 |
22.0 |
50 |
1.5 |
|
|
3.0 |
15 |
0.8 |
24.0 |
40 |
1.5 |
|
|
3.5 |
20 |
0.8 |
25.0 |
25 |
1.5 |
|
|
3.8 |
25 |
0.8 |
26.0 |
30 |
1.5 |
|
|
3.9 |
15 |
0.8 |
27.0 |
50 |
1.5 |
|
|
4.0 |
20 |
0.8 |
28.0 |
30 |
1.5 |
|
|
4.5 |
30 |
0.8 |
29.0 |
50 |
1.5 |
|
|
5.0 |
35 |
0.8 |
30.0 |
30 |
1.5 |
|
|
5.5 |
30 |
0.8 |
32.0 |
30 |
1.5 |
|
|
6.0 |
40 |
0.8 |
34.0 |
40 |
1.5 |
|
|
6.5 |
40 |
0.8 |
35.0 |
50 |
1.5 |
|
|
7.0 |
40 |
0.8 |
36.0 |
40 |
1.5 |
|
|
7.5 |
45 |
0.8 |
38.0 |
40 |
2.0 |
|
|
8.0 |
45 |
1.0 |
40.0 |
40 |
2.0 |
|
|
8.5 |
40 |
1.0 |
42.0 |
40 |
2.0 |
|
|
9.0 |
35 |
1.0 |
44.0 |
40 |
2.0 |
|
|
9.5 |
35 |
1.0 |
45.0 |
40 |
2.0 |
|
|
10.0 |
45 |
1.0 |
46.0 |
40 |
2.0 |
|
|
11.5 |
35 |
1.0 |
48.0 |
40 |
2.0 |
|
|
12.0 |
45 |
1.2 |
50.0 |
40 |
2.0 |
|
|
13.0 |
40 |
1.2 |
|
|
|

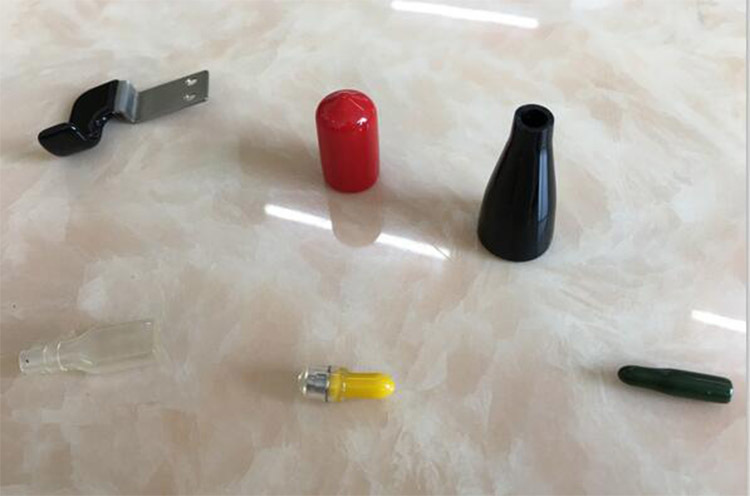

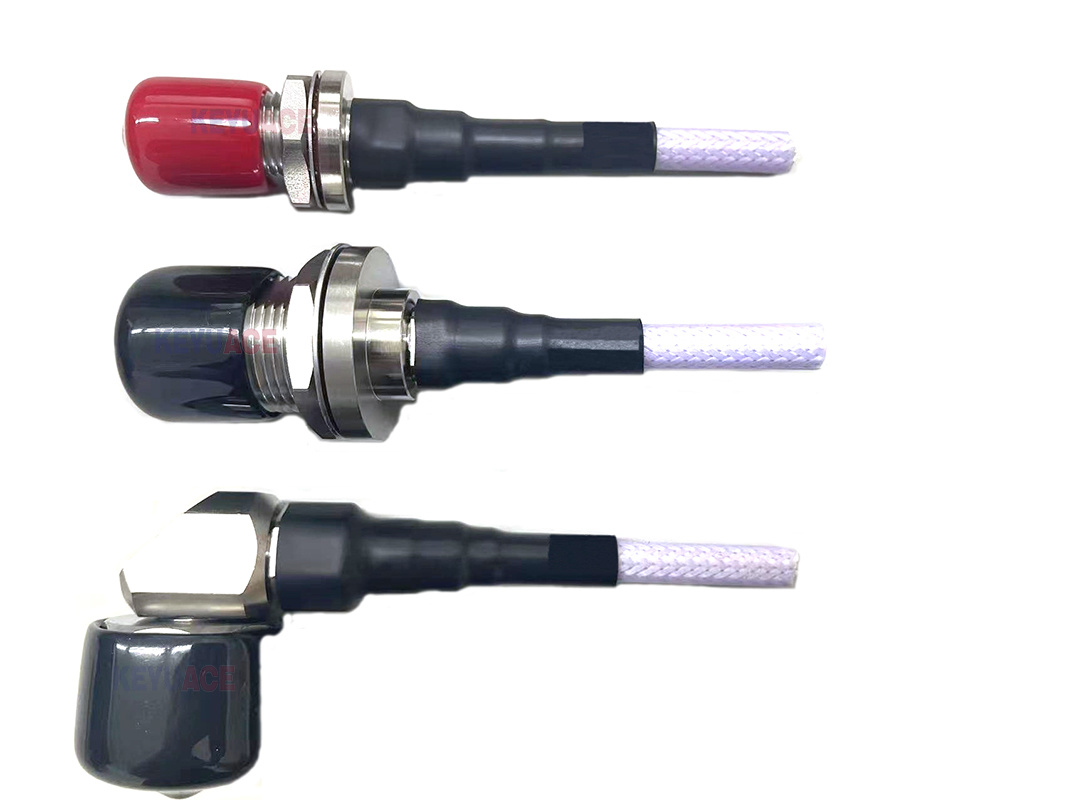

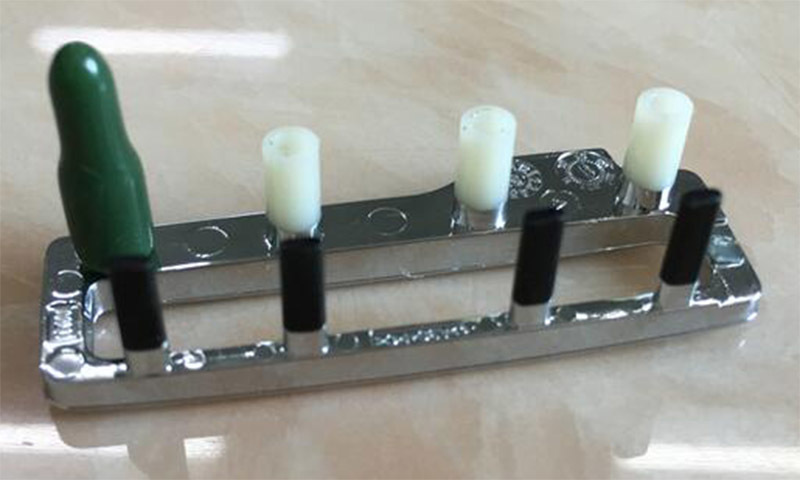

PVC sealing cap application
