KY-175℃ KYNAR heat shrinkable sleeving
Product Overview：
- Product Features
- Specifications
- Technical data
- Video
-
KYNAR Heat Shrinkable Tubing With the speciality of superior chemical and physical properties, high temperature resistance, high flame resistance, chemical solvent resistance, rub resistance, and so on.
KY-175℃ KYNAR Heat Shrink Tubing ( Also called PVDF heat shrink Tube ) used in automobile, electronics, military, medical equipment and other fields and allies to industries: Scalpel,coagulator knife, electric coagulation knife and other metal medical equipment for insulation protection.
PVDF heat shrink Tube also has been widely used in Stainless steel cable protection for automobile , Or Motorcycle brake line protection.
PVDF heat shrink Tube Applied to motorcycle brake line photos

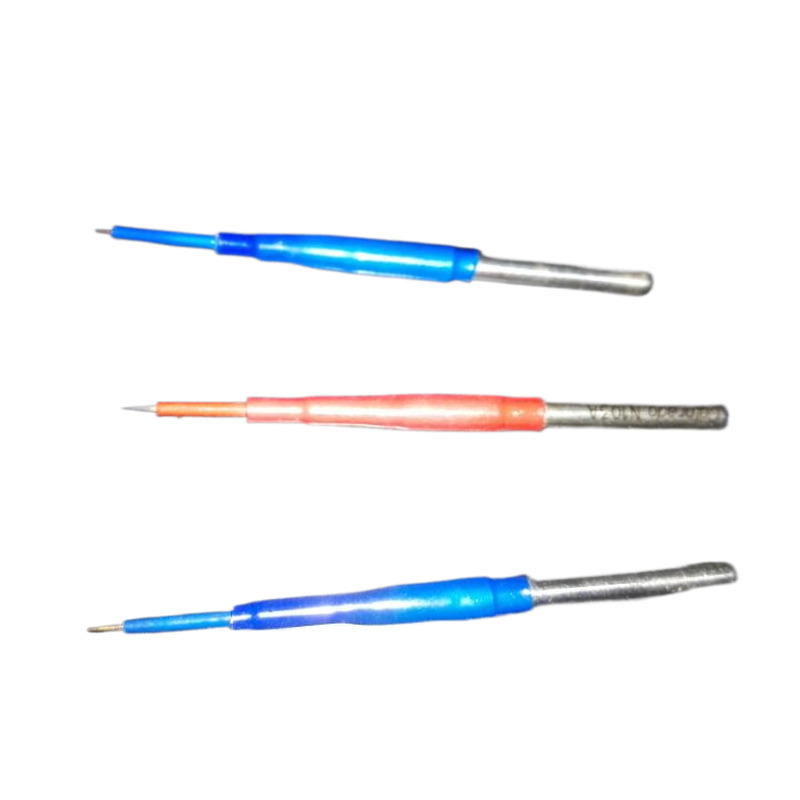

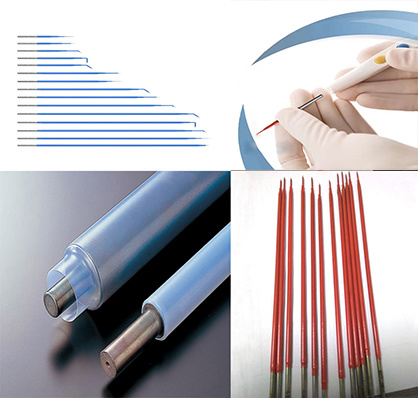

PVDF heat shrink Tube Used for scalpel protection photos
Key words:- PVDF Heat Shrink Tubing
- KYNAR Heat Shrink Tubing
- Brake line wear resistant protection heat shrink tube
- motorcycle brake line protection
- Stainless steel cable protection for automobile
-
Part Number Nominal Size As supplied
(mm)After recovered (mm) Standard Packing
(M/Roll)mm inch Inside diameter Inside diameter Wall thickness KY175-012 1.2 3/64 1.2 0.6 0.25±0.05 1.2 / 100 KY175-016 1.6 1/16 1.6 0.8 0.25±0.05 1.2 / 100 KY175-024 2.4 3/32 2.4 1.2 0.25±0.05 1.2 / 100 KY175-032 3.2 1/8 3.2 1.6 0.25±0.05 1.2 / 100 KY175-048 4.8 3/16 4.8 2.4 0.25±0.05 1.2 / 100 KY175-064 6.4 1/4 6.4 3.2 0.30±0.08 1.2 / 100 KY175-095 9.5 3/8 9.5 4.8 0.30±0.08 1.2 / 100 KY175-127 12.7 1/2 12.7 6.4 0.30±0.08 1.2 / 100 KY175-191 19.1 3/4 19.1 9.5 0.43±0.08 1.2 / 100 KY175-254 25.4 1 25.4 12.7 0.48±0.08 1.2 / 100 KY175-381 38.1 11/2 38.1 19 0.51±0.08 1.2 KY175-508 50.8 2 50.8 25.4 0.58±0.08 1.2 Color: black, clear, red, blue
Specifies the size, cropping can be provided according to the special requirements of the customer -
Product features:
Medium-hard materials, thin-wall designs
High temperature 175℃
Flex-shrink ratio: 2:1, 3:1
High flame retardant VW-1,A transparent tube design, operation within the Visual Layer
Excellent toughness, physical properties, chemical resistance, corrosion resistance
Operation indicator:
Shrink temperature：155℃
End temperature：175℃
Working temperature：-55℃~175℃
Conformance to standard：Approvals
Full AMS-DTL-23053/18 ，Class 2 Standard UL224 175℃ 600V VW-1
