TLFZ- Non expandable Dacron Textile Sleeving


Product Overview:

Velcro Dacron textile sleeving widely used in hydraulic tube, oil tube, air tube and other tube materials of mechanic equipment for explosion protection.
Contact us
  • Product Features
  • Specifications
  • Technical data
  • Video
  • TLFZ- Non expandable Dacron Textile Sleeving /  Velcro textile sleeve



    Description



    TLFZ- Non expandable Dacron Textile Sleeving is weave by high-performance Dacron multifilament. Velcro textile sleeve has the characteristics of excellent stretch resistance, corrosion resistance, explosion proof, abrasion proof, reducing noise, moisture absorption, dust proof, etc.

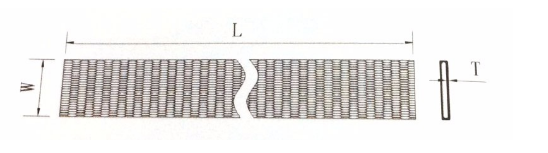

    Product drawing



    PFA Heat Shrink Tubing is designed to provide reliable insulation and protection for wires, cables, and components in demanding industrial environments. Made from perfluoroalkoxy (PFA), it offers excellent chemical resistance, high-temperature performance, and electrical insulation properties. When heated, the tubing shrinks to fit closely around the target component, helping protect against moisture, chemicals, and external damage. Available in different sizes and shrink ratios, PFA Heat Shrink Tubing is suitable for applications in electronics, chemical processing, laboratory equipment, and other industries requiring durable protective materials. Contact us for product details and selection support.

  • Product dimension



    Part NO.

    Lay flat(W)
    (MM)

    ID
    (MM)

    Wall thickness

    (T)(MM)

    Packaging(L)

    TLFZ-020

    20

    10

    1.0

    50m/roll

    TLFZ-025

    25

    14

    1.0

    50m/roll

    TLFZ-030

    30

    17

    1.0

    50m/roll

    TLFZ-035

    35

    20

    1.0

    50m/roll

    TLFZ-040

    40

    23

    1.0

    50m/roll

    TLFZ-045

    45

    26

    1.0

    50m/roll

    TLFZ-050

    50

    29

    1.0

    50m/roll

    TLFZ-060

    60

    36

    1.0

    50m/roll

    TLFZ-070

    70

    42

    1.0

    50m/roll

    TLFZ-080

    80

    48

    1.0

    50m/roll

    TLFZ-090

    90

    55

    1.0

    50m/roll

    TLFZ-100

    100

    61

    1.0

    50m/roll

  • Technical parameters

    1, Material quality: Dacron yarn ( Polyester )

    2, Working temperature: -50℃ to +150℃

    3, Melting point: 240℃± 10℃

    4, Standard color: black

    5, Certification: ROHS, MSHA, ISO6945

    6, Cutting tools, scissors or keen knife
