Teflon PTFE Corrugated Tube
Product Overview：
- Product Features
- Specifications
- Technical data
- Video
-

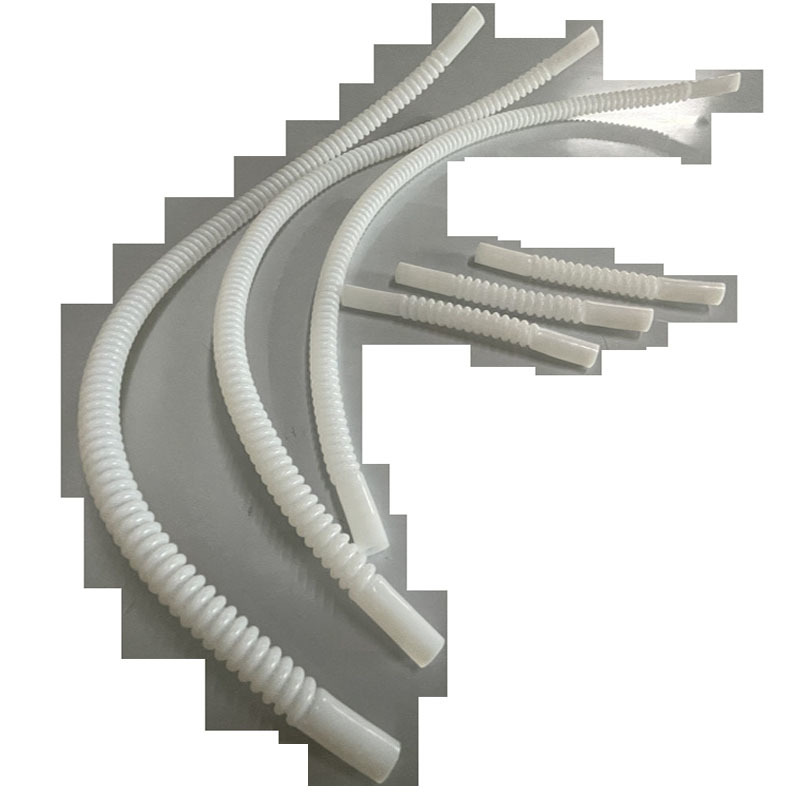

Teflon PTFE Corrugated Tube / Teflon Bellows / PTFE Corrugated Pipe
Main features:
Operating temperature range: -200℃~260℃, anti-corrosive agent, anti-sticking, very low friction coefficient, non-flammable, non-flammable in the air, in line with strict fire-fighting places, excellent electrical characteristics, no Aging problem, long-term exposure to ozone, strong light, non-toxic, in line with food grade.
Uses:
Teflon PTFE Corrugated Tube Widely used in chemical plants, food plants, and can be used as tubular reactors and exchangers in special occasions, such as: feeding and discharging pipes for tank trucks, storage tanks, and containers. It can be used to replace graphite, ceramic, glass and other pipes with lower mechanical strength.
Supply products:
can be supplied in continuous length or PCS.
-
SPEC .
Spec.
ID*OD(MM)
DN8
8*10
DN10
10*12
DN12
12*14
DN13
13*15
DN15
15*18
DN15
15*17
DN15
16*18
DN16
16*19
DN19
19*21.5
DN19
19*22
DN20
20*22
DN20
20*23
DN25
25*28
DN32
32*36
DN40
38*42
DN50
47*51
DN65
60*64
DN80
75*80
DNIOO
99*104
