WCAP-MINI Cable Waterproof Heat Shrink End Caps
Product Overview：
- Product Features
- Specifications
- Technical data
- Video
-
WCAP-Mini Cable Waterproof Heat Shrink End Caps
Feature & benefit
1, Shrink ratio: 4:1
2, Inner adhesive: water-proof, damp-proof, sealing
3, Defense against fluid and steam.
4, Good waterproof effect ( IP67 )
Operation Indexes:
1, First Shrink Temp.: 100 ℃
2, Final Shrink Temp.: 135℃
3, Working Temp.: -40 ℃ to 105 ℃
Up to standard:Approvals: RoHs compliant, weather resistance.

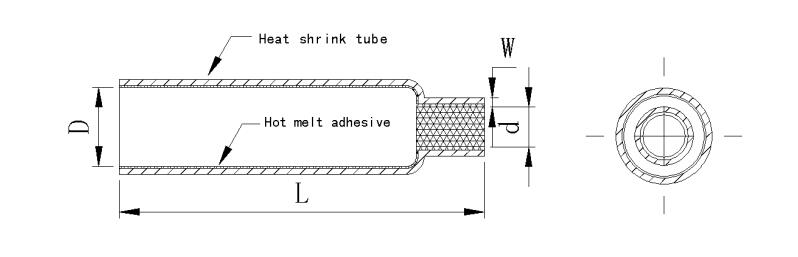

Drawing
How to choose the size:
1, Generally choose the biggest size that the sealing cap can shrink and cling on the module.
2, Other length sealing cap can be provided according customers’request.
-
Dimension
Part No.
standard
length
（mm）
As supplied
(mm)
After recovered (mm)
Thickness tolerance: 0.1-0.15mm
I.D.(min.)
I.D. (max.)
Total Thickness (min)
Outer sheath thickness (min)
Adhesive thickness (min)
MINI CAP-1
30.35
5.72
1.27
1.20
0.64
0.56
MINI CAP-2
30.35
7.44
1.65
1.52
0.76
0.76
MINI CAP-3
40.50
10.85
2.41
2.10
1.10
1.00
Thickness tolerance: 0.1-0.15mm
Standard Colors: Black, Transparent
Specifications can be customized according to customer needs.
