WAG-Corrugated Conduit For Sensor Automotive Low Voltage Wiring Harness
Product Overview:
- Product Features
- Specifications
- Technical data
- Video
-
WAG-Corrugated Conduit For Sensor Automotive Low Voltage Wiring Harness
V0 flame-retardant and Split Corrugated Tube can be customized.
Applications:

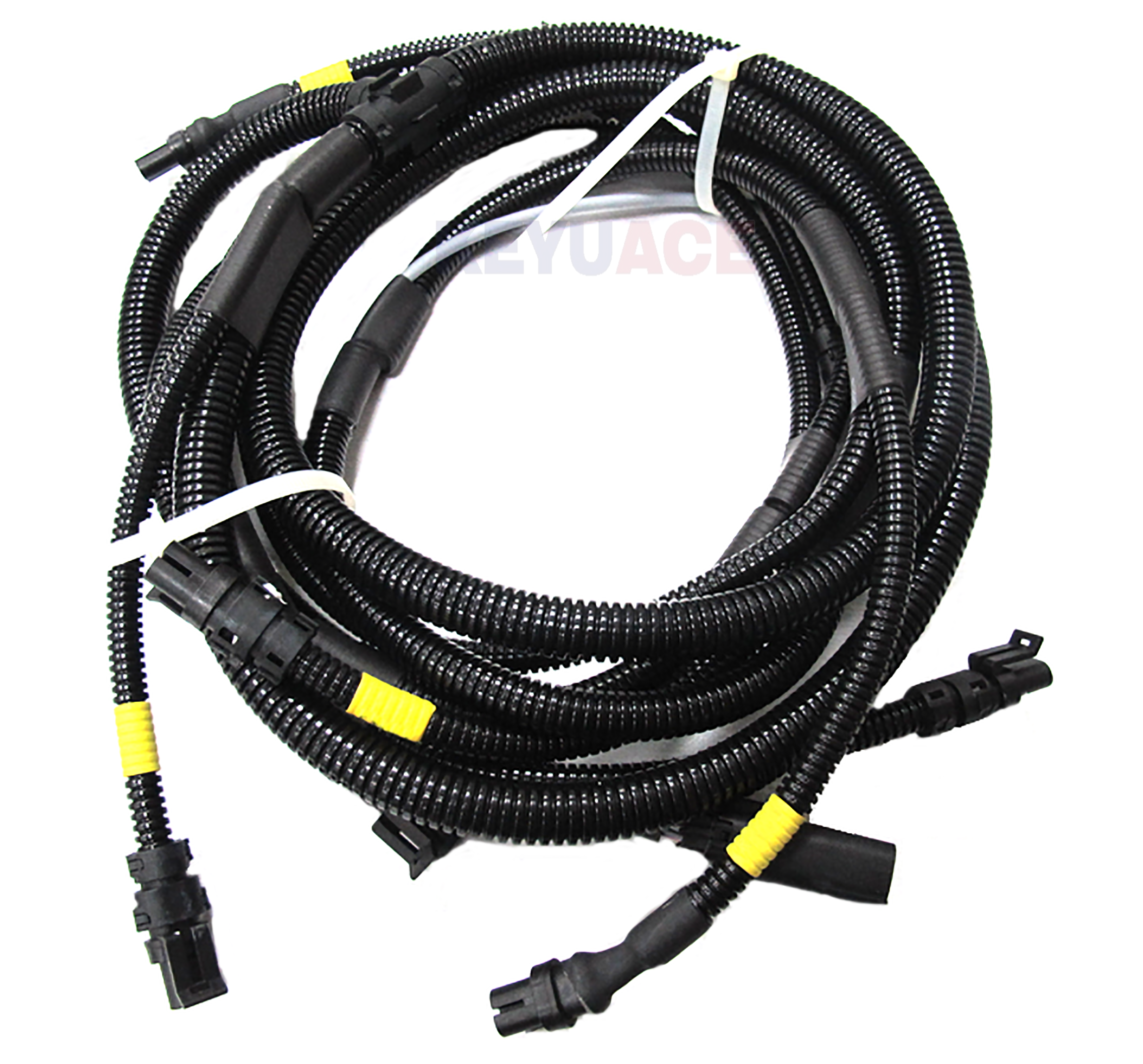

Corrugated conduit for sensor automotive low voltage wiring harness.
Nylon corrugated conduit for automotive communication wiring harness .
Corrugated tube protect high current wire harness .

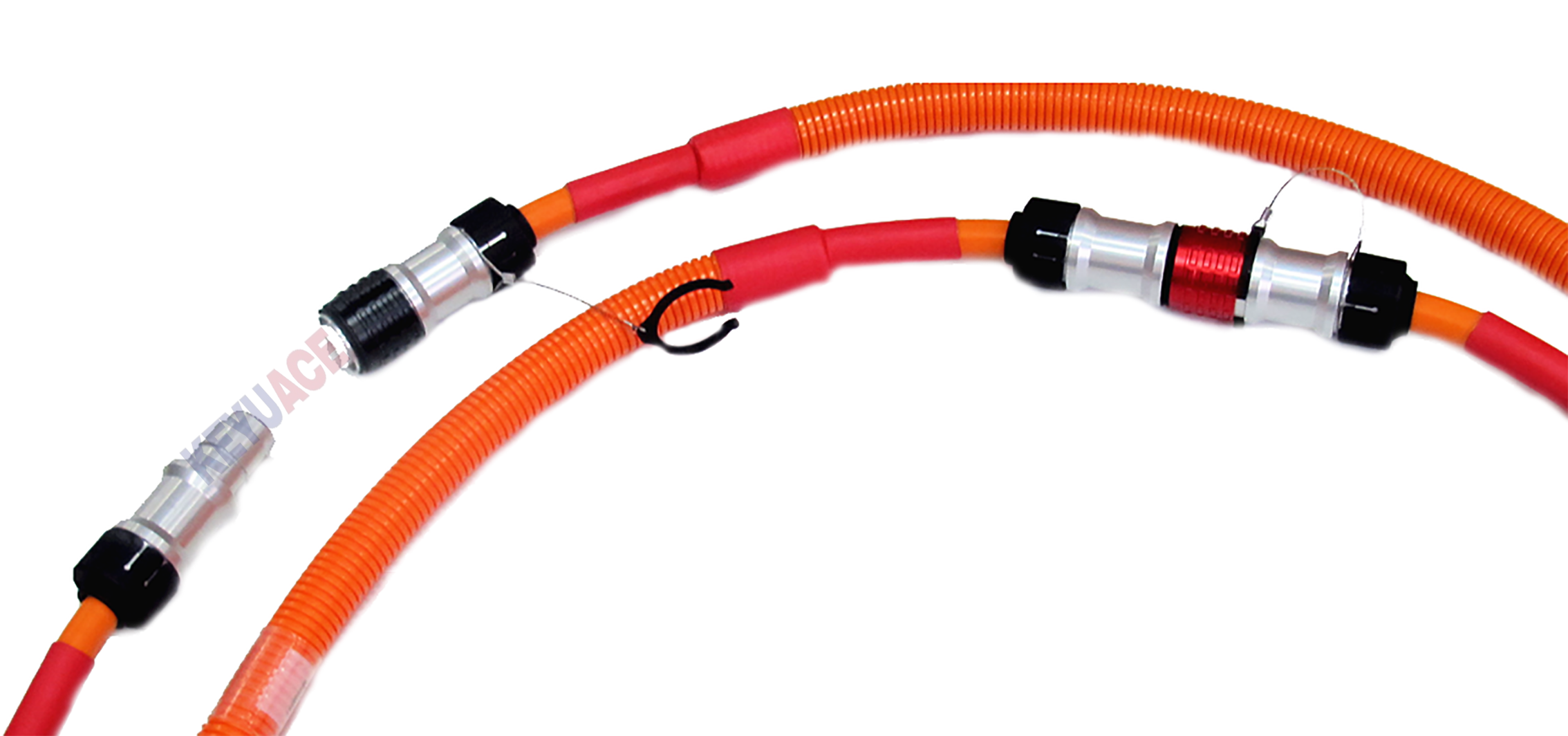

Special corrugated tube for new energy vehicle wiring harness.
-
Specification :
SIZE
ID: d(MM)
OD: D(MM)
Thickness:
H(MM)
Wave spacing
A (mm)
Wave width
a(mm)
Packing
(M/Roll)
Φ 4.8*7
4.8±0.3
7.0±0.3
0.27±0.05
(2.1)
(1.45)
400
Φ 5.2*7.4
5.2±0.3
7.4±0.3
0.27±0.05
(2.1)
(1.45)
400
Φ 5.5*8
5.5±0.3
8.0±0.3
0.27±0.05
(2.1)
(1.45)
400
Φ 6*9
6.0±0.3
9.0±0.3
0.27±0.05
(2.5)
(1.75)
400
Φ 7*10
7.0±0.3
10.0±0.3
0.27±0.05
(2.7)
(1.95)
200
Φ 7.5*10.5
7.7±0.3
10.7±0.3
0.27±0.05
(2.7)
(1.8)
200
Φ 8.5*11.5
8.5±0.3
11.7±0.3
0.30±0.06
(2.7)
(1.95)
200
Φ 9*12
9.2±0.3
12.0±0.3
0.30±0.06
(2.7)
(1.95)
200
Φ 10*13
10.2±0.3
13.0±0.3
0.30±0.06
(2.7)
(1.95)
200
Φ 11*14
11.2±0.3
14.0±0.3
0.30±0.06
(2.7)
(1.95)
200
Φ 12*15.8
12.0±0.3
15.8±0.3
0.30±0.06
(3.2)
(2.3)
200
Φ 12.9*16
12.9±0.3
16.0±0.3
0.30±0.06
(3.2)
(2.15)
200
Φ 13*17
13.2±0.3
17.0±0.3
0.35±0.08
(3.2)
(2.3)
200
Φ 14.5*18.5
14.5±0.4
18.5±0.4
0.35±0.08
(3.2)
(2.3)
200
Φ 15.1*19.7
15.1±0.4
19.7±0.4
0.35±0.08
(3.2)
(2.3)
200
Φ 15.3*18.8
15.3±0.4
18.8±0.4
0.35±0.08
(3.2)
(2.25)
200
Φ 16*20
16.0±0.4
20.0±0.4
0.35±0.08
(3.2)
(2.3)
200
Φ 17*21.2
17.0±0.5
21.2±0.5
0.35±0.08
(3.6)
(2.45)
200
Φ 18*22
18.1±0.5
21.8±0.5
0.40±0.08
(3.2)
(2.15)
200
Φ 19*23.5
19.0±0.5
23.5±0.5
0.40±0.08
(3.35)
(2.3)
200
Φ 19.5*24.3
19.5±0.5
24.3±0.5
0.40±0.08
(3.5)
(2.3)
200
Φ 20*25
20.5±0.5
25.0±0.5
0.40±0.08
(3.1)
(2.35)
100
Φ 21*25.5
21.5±0.5
25.5±0.5
0.40±0.08
(3.3)
(2.3)
100
Φ 22*26.8
22.0±0.5
26.8±0.5
0.40±0.08
(3.1)
(2.3)
100
Φ 23*28.5
23.2±0.5
28.5±0.5
0.40±0.08
(3.2)
(2.3)
100
Φ 25*32
25.5±0.5
32.0±0.5
0.40±0.08
(4.5)
(2.75)
50
Φ 26*31
26.0±0.5
31.0±0.5
0.45±0.10
(3.1)
(2.3)
50
Φ 29*34.5
29.0±0.6
34.5±0.6
0.45±0.10
(3.5)
(2.35)
50
Φ 32*36.8
32.0±0.6
37.0±0.6
0.45±0.10
(3.3)
(2.35)
50
Φ 36*42.5
36.0±0.6
42.5±0.6
0.50±0.12
(4.15)
(3.0)
50
Φ 40*45
39.8±0.6
44.5±0.6
0.50±0.12
(4.15)
(2.85)
50
Φ 48*54.5
48.0±0.8
54.5±0.8
0.50±0.12
(4.3)
(3.0)
25
Φ 56*67.2
56.0±1.0
67.0±1.0
0.60±0.15
(6.7)
(4.0)
20
Φ 66*80
66.5±1.0
80.0±1.0
0.65±0.15
(8.5)
(5.0)
15
Φ 91*106
91.0±1.0
106.0±1.0
0.70±0.20
(8.5)
(5.2)
10
Note: Wave spacing A and wave width a are reference values.
Color : Black/Orange (conventional), other colors can be customized.
-
Item
project
Performance
Test Methods
1
Tensile Strength(MPa)
PA≥60
ASTM D 2671
2
Elongation at break(%)
PA≥180
ASTM D 2671
3
Low temperature impact performance
After -40℃*4H,
No cracks and embrittlement in impact test
Steel ball:weight: 300g,
height: 100mm
4
Low temperature bending
After-40℃*4H
No cracks and embrittlement in bending test
Wrap around a round rod for 5 minutes to test
5
Moisture content
≥3.5%
Weighing method
6
High temperature deformation
Deformation rate ≤10%
Heat distortion temperature * 24h
7
Heat resistance
The tube not brittle
Heat distortion temperature * 240h
8
Aging performance
No brittleness, no powdering
Operating temperature *3000h
9
Flame retardant performance
Vertical combustion-V0, horizontal combustion-HB
GB/T 2408-2008
10
Burning rate
≤100mm/min
GB 8410-2006
11
Resistant to chemical reagents
The appearance is not allowed to be abnormal, and there should be no cracks in the bending
I a solution with a hydrochloric acid content of 10% or in a solution with a base content of 10%
Invasion (1h)
12
Oil resistant
No abnormal appearance is allowed, no cracks appear in bending
Gasoline, diesel, engine oil, hydraulic rotation,Transmission oil and engine coolant are soaked at room temperature for 20h
13
Copper corrosion
Does not corrode
UL 224
14
Protection level
IP68
Note: PA Corrugated tube have three temperature levels of 105°C, 125°C
and 135°C, please choose according to your needs.
Temperature resistance grade*working temperature*heat deformation temperature*heat aging temperature*heat aging temperature and test time comparison table:
Temperature resistance grade
A
B
C
D
Operating temperature(℃)
-40~105
-40~125
-40~135
-40~150
Heat distortion Temperature(℃)
120±3
140±3
150±3
165±3
Thermal deformation test time
24h
24h
24h
24h
Thermal aging temperature(℃)
105±3
125±3
135±3
150±3
Thermal aging test time
3000h
3000h
3000h
3000h
Thermal aging temperature(℃)
125±3
150±3
150±3
175±3
Thermal aging test time
240h
240h
500h
240h
